PIP Array – Lipid-Protein Interaction Assay

Product Number: P-6100

PIP Array - Lipid-Protein Interaction Assay - Echelon Biosciences

Support

PIP Arrays are membranes pre-spotted with a concentration gradient of all eight phosphoinositides. PIP Arrays are used in a simple protein-lipid overlay assay to help determine the specificity and sensitivity of your protein towards one or more of these lipids.

Briefly, once the membrane is blocked, it is incubated with your protein of interest. The membrane is then washed and incubated with an HRP labeled antibody against the protein or your proteins affinity tag. The membrane is washed again before incubation with ECL or a precipitating TMB detection reagent. This can then be visualized with the appropriate equipment based on the detection reagent used.

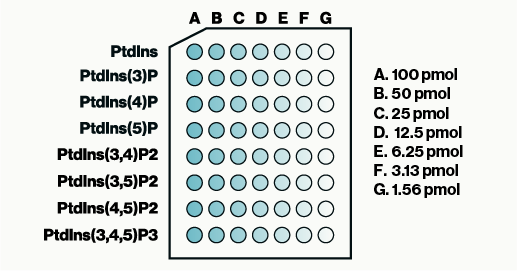

PIP Arrays are a 4 x5 cm hydrophobic membrane with 100, 50, 25, 12.5, 6.25, 3.13, and 1.56 pmol of the following lipids: Phosphatidylinositol (PtdIns), Phosphatidylinositol (3)-phosphate (PtdIns(3)P), Phosphatidylinositol (4)-phosphate (PtdIns(4)P), Phosphatidylinositol (5)-phosphate (PtdIns(5)P), Phosphatidylinositol (3,4)-bisphosphate (PtdIns(3,4)P₂ ), Phosphatidylinositol (3,5)-bisphosphate (PtdIns(3,5)P₂), Phosphatidylinositol (4,5)-bisphosphate (PtdIns(4,5)P₂), Phosphatidylinositol (3,4,5)-trisphosphate (PtdIns(3,4,5)P₃).

Each 5-pack of PIP Arrays includes a free vial of the PI(4,5)P₂ specific binding protein for use as a positive control. For a list other phosphoinositide binding proteins, click here.

Categories	Kits & Assays
Filter	Array, Phosphoinositides

Technical Data Sheet

Being bio-reactive blog:“Lipid-Ligand interaction tools: lipids are not scary intermediates anymore”

Blog: 5 tips to improve your strips!

1) Gozani, O., P. Karuman, et al. (2003). “The PHD finger of the chromatin-associated protein ING2 functions as a nuclear phosphoinositide receptor.” Cell 114(1): 99-111.
2) Lindsay, A. J. and M. W. McCaffrey (2004). “The C2 domains of the class I Rab11 family of interacting proteins target recycling vesicles to the plasma membrane.” J Cell Sci 117(19): 4365-4375.
3) Andersson, E., F. Schain, et al. (2006). “Interaction of human 15-lipoxygenase-1 with phosphatidylinositol bisphosphates results in increased enzyme activity.” Biochim Biophys Acta 1761(12): 1498-505.
4) Guittard, G., A. Gerard, et al. (2009). “Cutting Edge: Dok-1 and Dok-2 Adaptor Molecules Are Regulated by Phosphatidylinositol 5-Phosphate Production in T Cells.” J Immunol 182(7): 3974-3978.
